Wholesale-Digital Red LED Tachometer RPM Speed Meter + Hall Proximity Switch Sensor NPN free shipping

Wholesale-Digital Red LED Tachometer RPM Speed Meter + Hall Proximity Switch Sensor NPN free shipping

$20.01
Product Code:
2857002002562
Stock
Instock

Overview

New Red LED Tachometer RPM Speed Meter + Hall Proximity Switch Sensor NPN   Specification:   Power requirement:DC 8-15V Measure range:5-9999RPM Clear...
More Choices
New Red LED Tachometer RPM Speed Meter + Hall Proximity Switch Sensor NPN

Specification:

Power requirement:DC 8-15V
Measure range:5-9999RPM
Clear zero:Automatic
Clear zero time:about 10s. the greater the RPM value,the longer the clear  zero time
Refresh frequency: 0.2-0.5S(120-1200RPM);0.25-0.06S(2400-9999RPM)
Measure indication:RPM<5000,±2;RPM>5000,±3
Display:Red 0.56" LED
Sign:Pusle signal,NPN 3 wires normally open
Response frequency:100HZ
Tachometer dimension:72x36x20mm,panel cutout Dimension:68x33mm

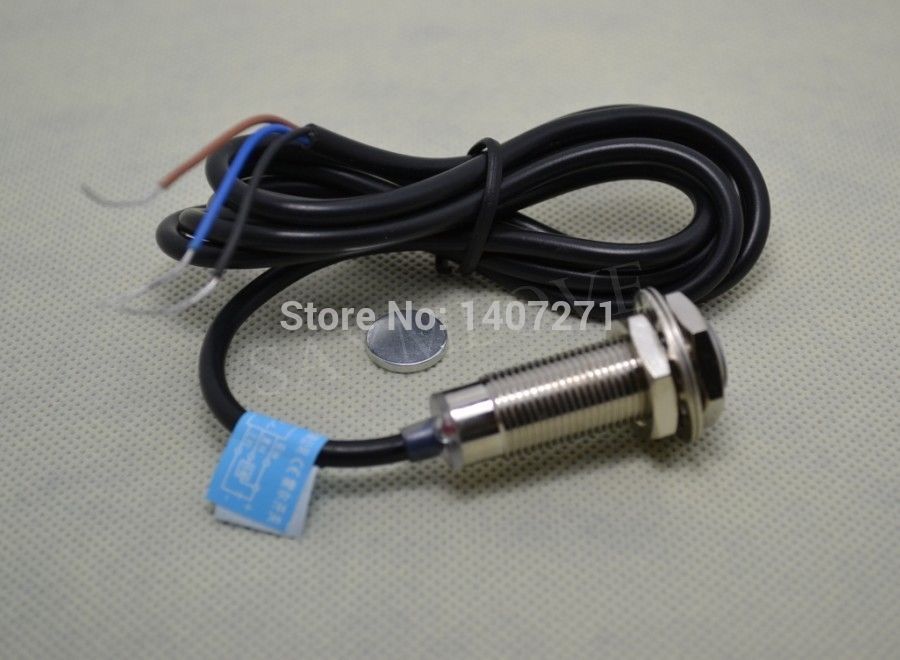

Hall proximity model:NJK-5002C
Sensor dimention: M12x10x37mm
Detection range: 1mm-10mm
Proximity output current: 200mA
Detected objects: Magnet
Sensor wiring:brown-Power+;blue-Power-;black-signal
Operating temperature: 0 to 50°C.




Package include:

1 x New Red LED Tachometer RPM Speed Meter
1 x Hall Proximity Switch Sensor NPN
