SZBJ BM803A+ 3999 Counts Digital Clamp Multimeter AC/DC Voltage Current Tapacitor frequency temperature tester True RMS

SZBJ BM803A+ 3999 Counts Digital Clamp Multimeter AC/DC Voltage Current Tapacitor frequency temperature tester True RMS

Price $53.76
Product Code:
2874012626338
Stock
Instock

Overview

Features: 1.Multifunction: Can accurately measure  AC/DC voltage current, resistance, capacitance,frequency,temperature. 2. Super ...

Available Options

More Choices

kjho

Features:
1.Multifunction: Can accurately measure  AC/DC voltage current, resistance, capacitance,frequency,temperature.
2. Super Big Jaw:Jaw can be opened 52mm, clamp head closed no gapeduce magnetic induction Error.
3. Large LCD display screen:no ghosting,reading data accuratly,maximum display counts 3999.
4. More advantages:True RMS,auto range,data hold,diode,continuity test.
5. NCV test: Non-contact voltage detection function make it detect voltage without touching any wires to avoid electric shock.

Descriptions:
1. This BM803A+ is a handheld digital clamp multimeter,high reliability,high accuracy and portability,a perfect tool for professions,factories,schools,amateur and home use.
2. Can accurately measure DC/AC voltage current, resistance, capacitance, frequency,temperature,continuity, diode test.
3. Widely use: It/'s a perfect tool for the laboratory,factory and home.

Specifications:
Model: BM803A+
Display Count: 3999
Jaw:52mm
DC voltage(V):400mV/4V/40V/400V/1000V
AC voltage(V): 400mV/4V/40V/400V/700V
DC current(A):40A/400A/1000A
AC current(A):40A/400A/1000A
Resistance(Ω):400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance:10nF/100nF/1uF/10uF/100uF/1000uF/10mF
Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz
Temperature:-50~1000℃(-58~1832℉)
Duty range:1%~99%
Diode test:Y
Backlight:Y
Data hold:Y
Power Supply:1 x 9V 6F22 battery(not included)
Item weight:360g
Item size:249x89x38mm

Package informations:
Package weight:645/1.42lb
Package size:286x124x53mm/11.26x4.88x2.09in
General Box Package

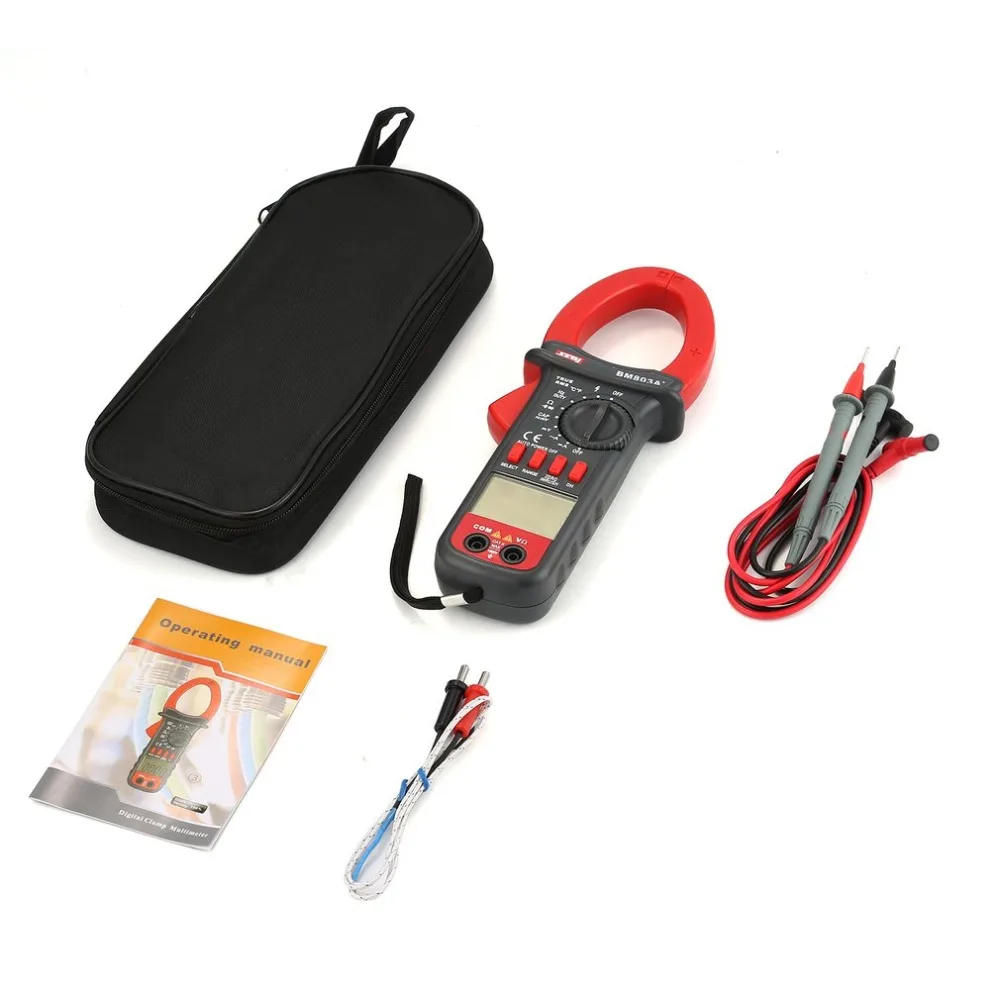

Package included
1 x BM803A+ digital clamp multimeter
1 x Storage bag
1 x Test leads
1 x Temperature probe
1 x User manual
