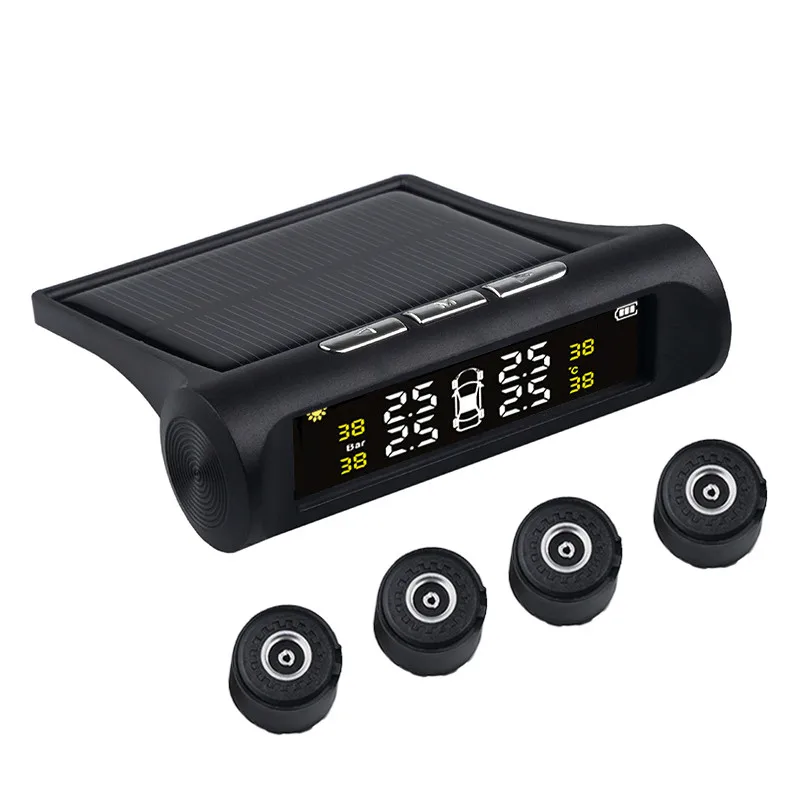

Solar Charging Car TPMS Tire Pressure Monitoring System HD Digital LCD Display Auto Alarm tool Wireless 4 Sensor USB port

Solar Charging Car TPMS Tire Pressure Monitoring System HD Digital LCD Display Auto Alarm tool Wireless 4 Sensor USB port

Price $29.89
Product Code:
1693012626838
Stock
Instock

Overview

    Parameter 1.Monitoring system body Operating voltage: 3.7-5V Storage temperature:-30°C-90°C working temperatur...

Available Options

More Choices



Parameter

1.Monitoring system body

  • Operating voltage: 3.7-5V
  • Storage temperature:-30°C-90°C
  • working temperature:-30°C-85°C
  • RF Emission frequency:433.92MH±50KHz
  • RF Signal sensitivity:-90dbm
  • Display mode:LCD Color
  • Bright screen current:≤6mA
  • Black screen current:≤4mA
  • Size:85*95MM

2. External Sensor

  • Battery life:24 months
  • Operating voltage:2.1-3.6V
  • Storage temperature:-30°C-90°C
  • working temperature:-30°C-85°C
  • Temperature resolution:±2°C(25°C)
  • Pressure range:0-5.0Bar
  • Pressure resolution:±0.1Bar
  • Waterproof grade:IP67
  • Transmitted power:≤10dBm
  • Emission frequency:433.92MHz
  • Size:21mm*17mm
  • weight:≤8.0g
  • lithium battery:CR1632(Model)

Features:


  • Anti - theft sensor;
  • Solar power charging;
  • High and low pressure, leak alarm;
  • LCD display screen, Simple user interface;
  • The internal sensor has a longer service life.
  • High accuracy, Using Freescale imported chips;
  • Real-time monitoring tire pressure and temperature;
  • Smart start: parking automatically sleep, the car starts automatically wake up.

Description:

  • Solve the sensor does not work:Match sensor(Vent)
  • Long press /'/'menu key/'/' 3 seconds to /'/'U/S/'/',then short press /'/'menu key/'/' several times to enter/'/'LID/'/' interface,it shows ID of four tires and car icon.
  • Short press /'/'left/right select key/'/' to learn ID opertion.Select tire you plan to learn ID of sensor by press/'/'menu key/'/',default setting is /'/'FL/'/'>/'/'FR/'/'>/'/'RR/'/'>/'/'RL.
  • When tire is selected,display new /'/'ID/'/' in receiver after active sensor//'s ID(internal sensor active by charging/vent tier).
  • Do the same operation to match other three sensor.When all sensor are matched,short press /'/'menu key/'/' to save and go to /'/'Ex/'/'.

Specification:

  • Solar power charging
  • LCD displaying
  • Adhere to windscreen for installation
  • Operating frequency: 433.92Mhz ± 50KHz
  • Operating voltage: 3.7-5 V
  • Working temperature: -20 ℃ -75 ℃
  • Adhere to windscreen for installation
  • Operating frequency: 433.92Mhz ± 50KHz
  • Operating voltage: 3.7-5 V
  • Working temperature: -20 ℃ -75

Packing:

  • 1 set Solar Charging Tyre Pressure Monitoring System



Colorful display

Solar Charging Car TPMS Tire Pressure Monitoring System HD Digital LCD Display2

White and black display
